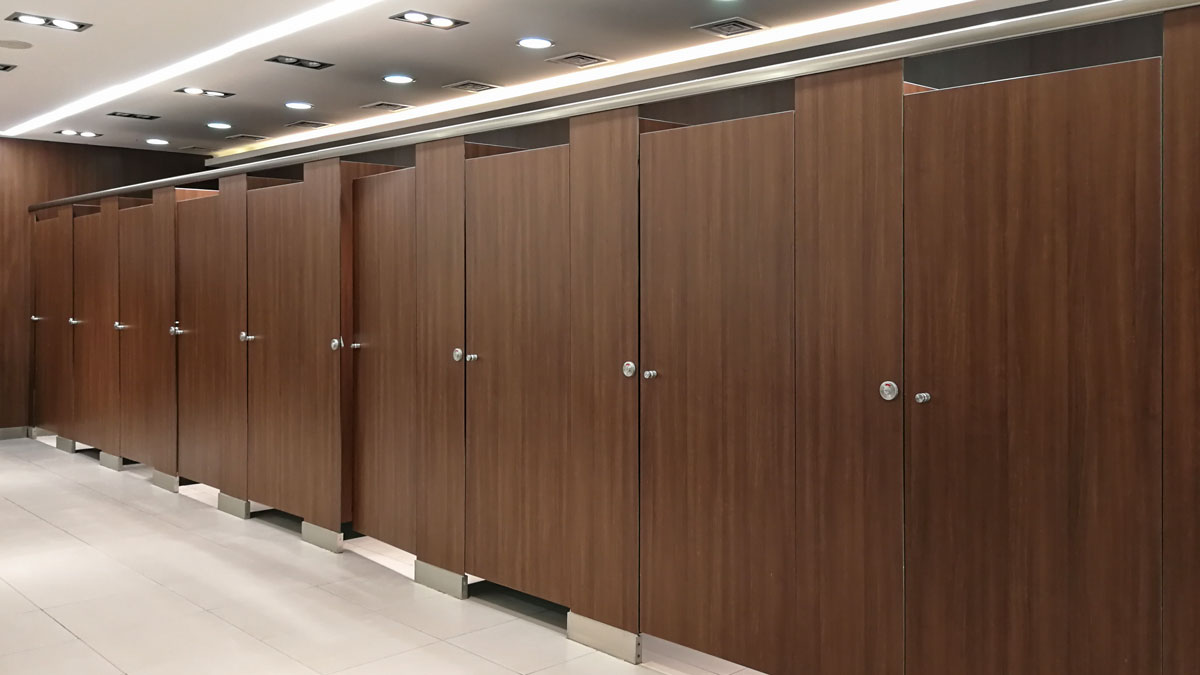

Compact Laminate Toilet Partitions
Most Cost Effective
Waterproof, fireproof and impact resistant, with a service life of 10-20 years.
Overview
Waterproof
Environmental
Scratch Resistant
Flame Retardant
Harmless
Easy Clean
Why JIALIFU is better
Since its establishment in 2001, Jialifu has been specializing in the design and manufacture of toilet cubicles, vanities, storage cabinets, IPS duct panels, and doors for commercial projects. We have passed ISO9001, ISO14001, ISO45001, FSC certification, SGS, Intertek, TUV test report, national high-tech enterprise certification, and intellectual property management system certification.
Jialifu achieved production of intelligence, datamation and refinement through introducing advanced production machines, including automatic laminate production line, automatic routing and milling production line, automatic edge bonding machine, intelligent cutting machine.
Compact Laminate Toilet Partitions Colors
There are hundreds of colors to choose from, and solid colors with proper decoration will leave a modern impression. Wood grain color and marble color will make people feel classic and it would be better used to decorate as luxury and noble.
1051-Iron Grey
1158-Wonderland Cherry
1034-Chrome Yellow
1191-Nepal Teak
1053-Black
1207-Italian Pear
1083-Crane Top Red
1319-Beige Texture
1088-Kiwi
1312-Mottled Grey
1093-Brilliant Blue
1503-Chocolate Net Texture
Product Specifications
This kind of series is popular among general buildings and modern buildings. Floor installation and the durable feature of embedded partitions always attract many buyers from schools, research institutes and factories. Headrail mounted toilet cubicle had created one way of installation with high efficiency.
Hinge
Supporting Leg
Lock
Coat Hook
Headrail Braced
Suggest height: 1940mm-2000mm
Suggest depth: 1500mm-1800mm
Floor clearance: 100mm or 150mm
Anodized aluminum top rail

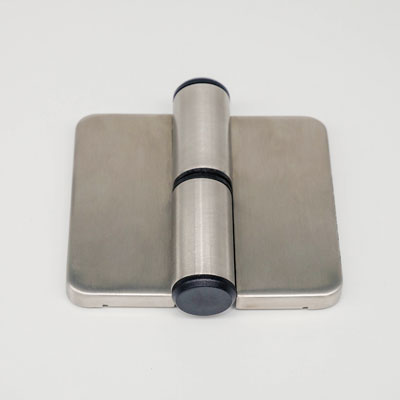

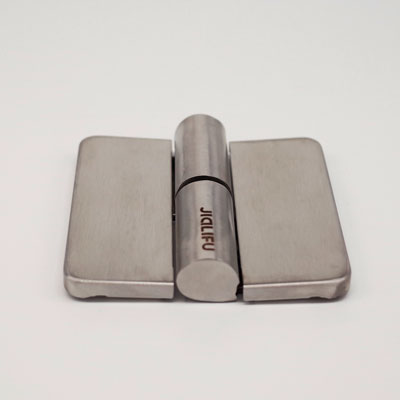

Hinge
Stainless steel hinge with adjustable cams for door to fall closed, open or ajar. Lift off hinge to allow emergency access.
Indicator bolt
Stainless steel indicator bolt with emergency release.
Wall fixings
Partitions fixed to walls using stainless steel L bracket or anodized aluminum U rail
Pedestal
100mm or 150mm high adjustable leg(other height can be customized), or stainless steel shoe box
Coat hook
Panel Material
The compact laminate board is constructed from multiple layers of high-quality kraft paper, reinforced by thermosetting resins under high pressure and temperature, with decorative paper on the surface.
It is one kind of material that totally water resistant, fire resistant, impact resistant, easy to clean, and durable.（in accordance with ANSI NEMA LD 3-2005 & EN 13501-1:2018 ） Especially suitable for airports, stations, hospitals, schools, office buildings, shopping malls, stadiums, and other places with high traffic.

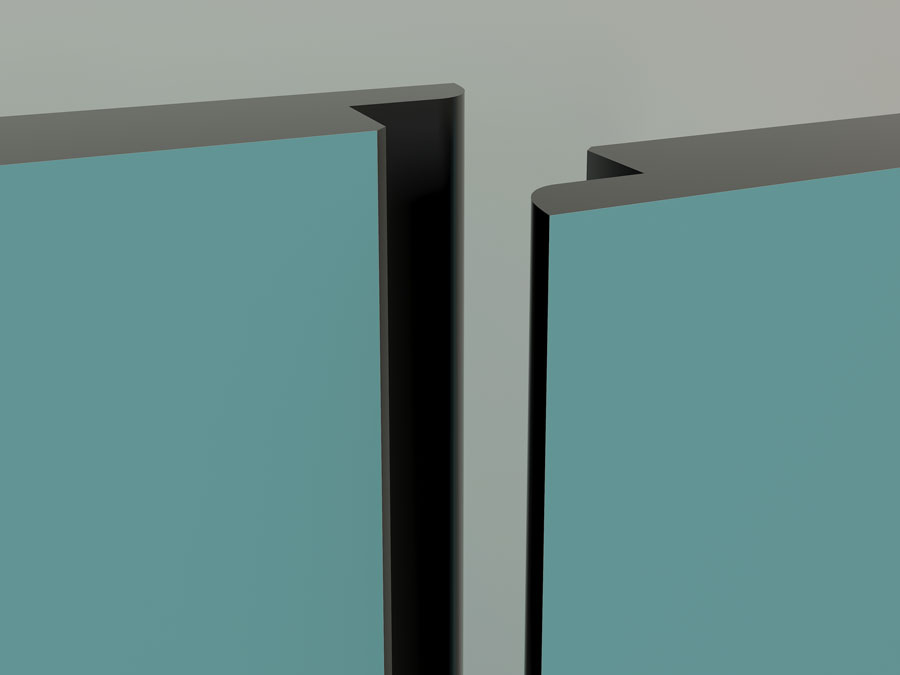

Doors and pilasters are manufactured with routed edges to provide an interlocking design that eliminates undesirable sightlines. Dividers are treated with arris edges.
Available thickness: 12mm-25mm
Recommend thickness: 12mm/13mm/15mm/18mm/19mm

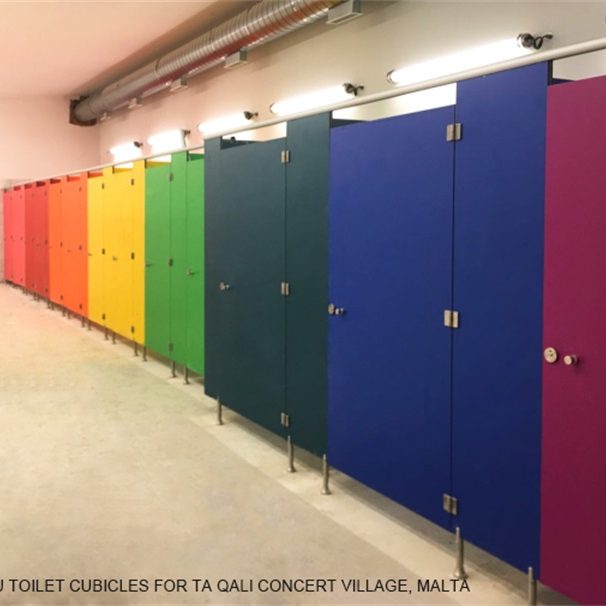

Featured Cases
We pride ourselves in participating in over 20,000 completed global projects.
