Glass Composite Toilet Cubicle
Most modern design
Glossy glass surface keeps the entire bathroom glamorous at all times, showing the luxury feeling.
Non-deformation
Easy Clean
Waterproof
Environmental
Unique Design
Durable

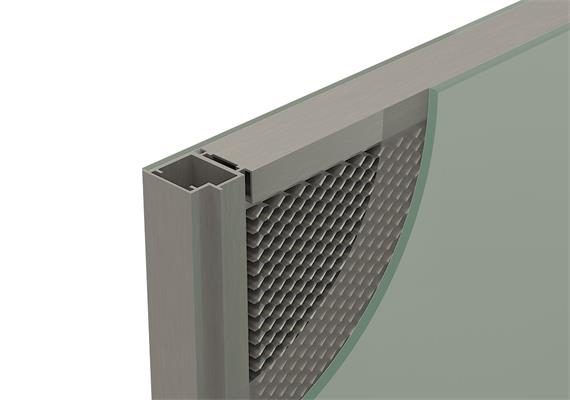

Glass Composite Board
Jialifu glass composite board is composed of aluminum hexagonal honeycomb core and high tempered glass on both side, sealed with anodized aluminum frame, and compounded by environmentally friendly adhesive. It is easy to clean, with silky texture and unique bright glass surface. It is the optimal toilet partition material for high-end sanitary partitions in star hotels, high-end office buildings, luxury clubs...
Available Thickness: 36mm, 42mm, 44mm
Customizable Specifications
Classic Styles

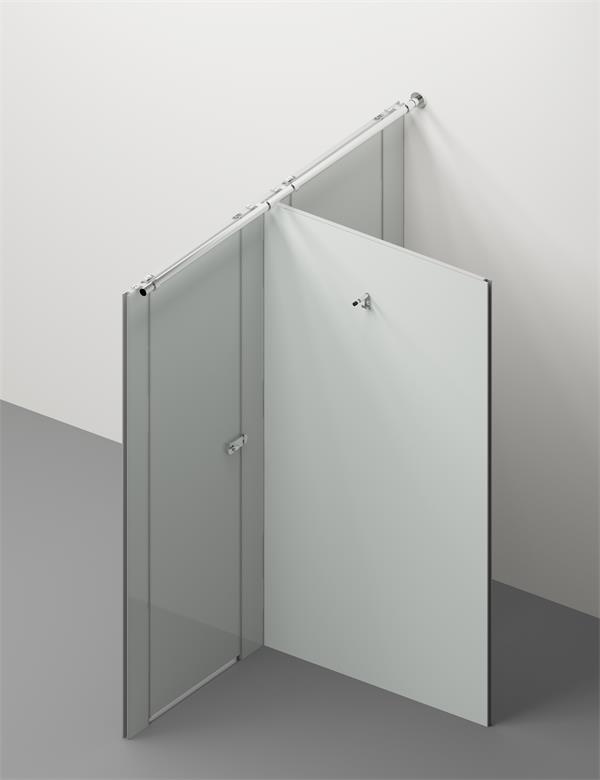

Headrail Braced
Overall height: 2100/2400mm, bespoke heights available
Suggest depth: 1500-1800mm
Floor clearance: 24mm minimum
Edge treatment: Aluminum profile
Hardware
Aluminum/S.S. headrail
S.S. universal hinges on the top&bottom of doors.
(Hidden)HPL strip will be inserted into the partitions.
Indicator bolt with emergency release facility and keep.
Pedestal
1. Adjustable stainless steel leg with brushed finish in 100mm/150mm height
2. Sit on ground directly

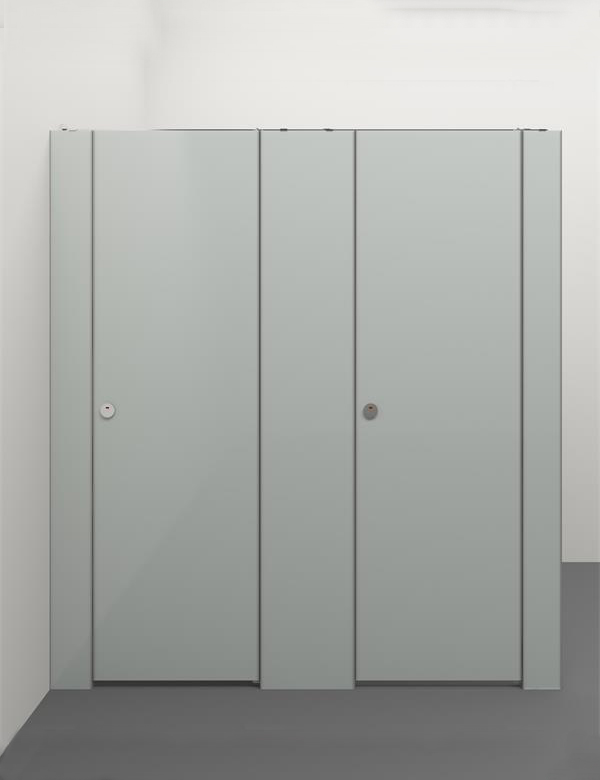

Floor to Ceiling
Max height: 4200mm
Suggest depth: 1500-1800mm
Floor clearance: 24mm minimum
Edge treatment: Aluminum profile
Hardware
S.S. universal hinges on the top&bottom of doors.
(Hidden)HPL strip will be inserted into the partitions.
Indicator bolt with emergency release facility and keep.
Pedestal
1. Stainless steel skirting with brushed
finish (customized height)
2. Sit on ground directly

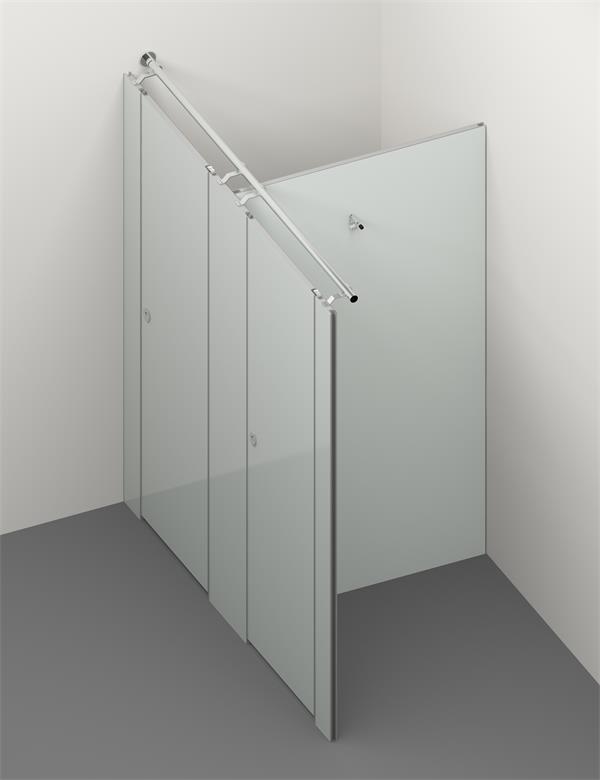

Ceiling Hung
Max height: 3000mm
Suggest depth: 1500-1800mm
Floor clearance: 150mm
Edge treatment: Aluminum profile
Hardware
S.S. universal hinges on the top&bottom of doors.
(Hidden)HPL strip will be inserted into the partitions.
Indicator bolt with emergency release facility and keep.
Remark
Ceiling should be finished after toilet cubicles
Toilet Cubicles Hardwares
Jialifu have different types of hardwares for you, the material could be aluminum alloy, zinc alloy, 304 or 316 stainless steel.
Hidden HPL Strip Wall Fixing

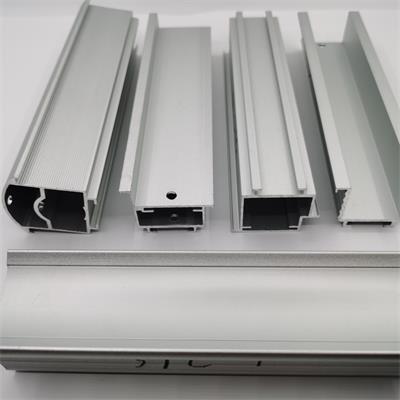

Classic Frame (Customizable)
Built-in Lock
Hidden Headrail
Sit on Ground Directly

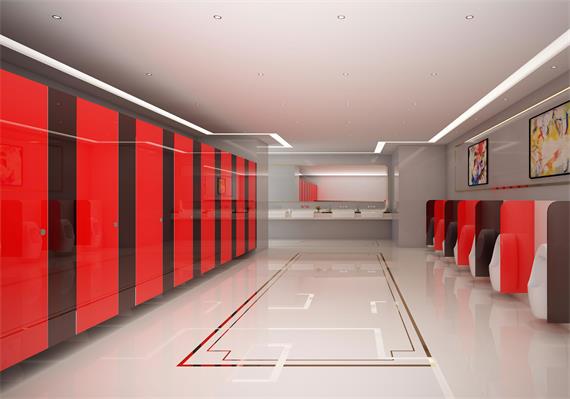

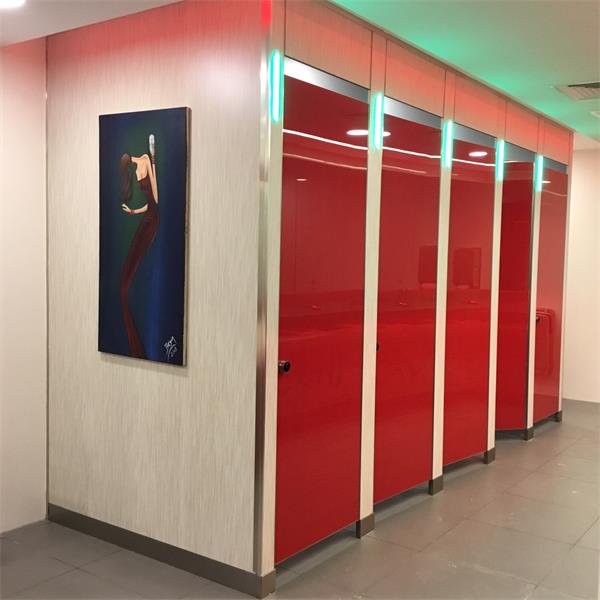

Featured Cases
Need help? Send us a message to start your project
Not sure which one is right for you? Questions about installation, specifications or design? Contact our friendly team for technical and buying advice now.
